    Vertical kohler backpack drill BZ-30L

    The company has professional and technical personnel, R&D engineers and after-sales service personnel to form an experienced team.

    Soil sampling rig

    Portable exploration rig

    Hydraulic core drill

    Reverse/positive circulation well drilling rig

    The engineering drilling machine

    Vertical kohler backpack drill BZ-30L

    Mobile Station
    查看手機站
    BZ-30L型立式背包鉆機是一款拆解后可背負式輕便巖心鉆機,也可以選擇主要用于礦產勘查、地球化學勘探淺層取樣、礦脈探查、地學研究、工程勘察、油田勘察、水利工程勘察、公路工程勘察、隧道襯砌、仰拱檢測等。

    信息詳情

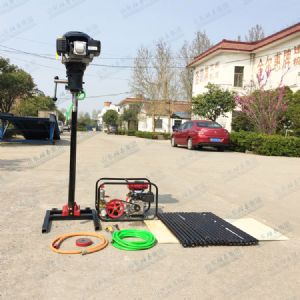

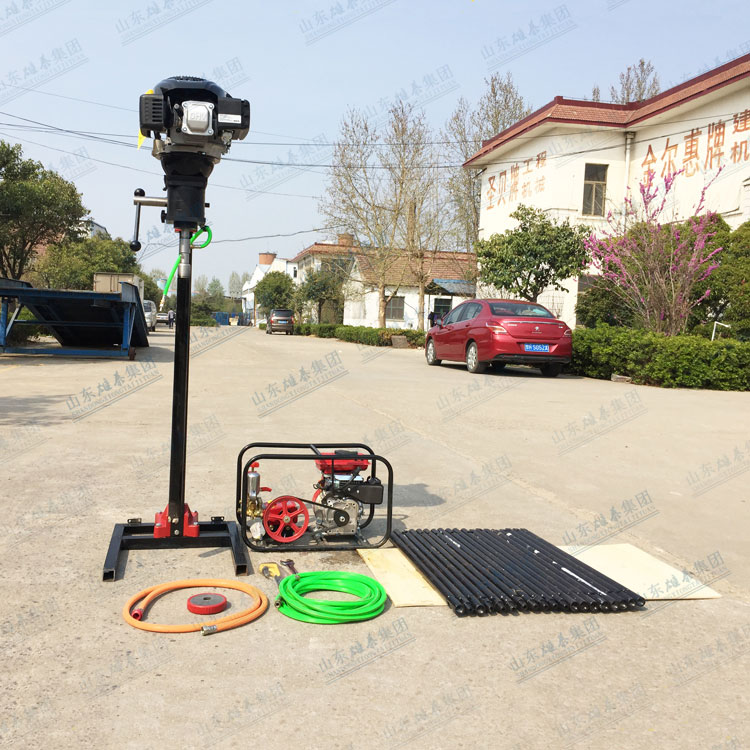

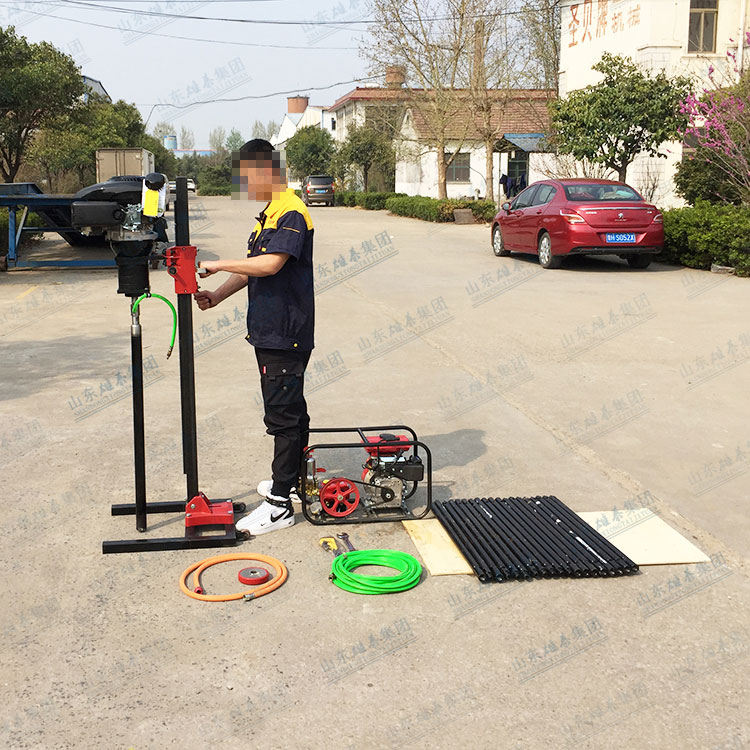

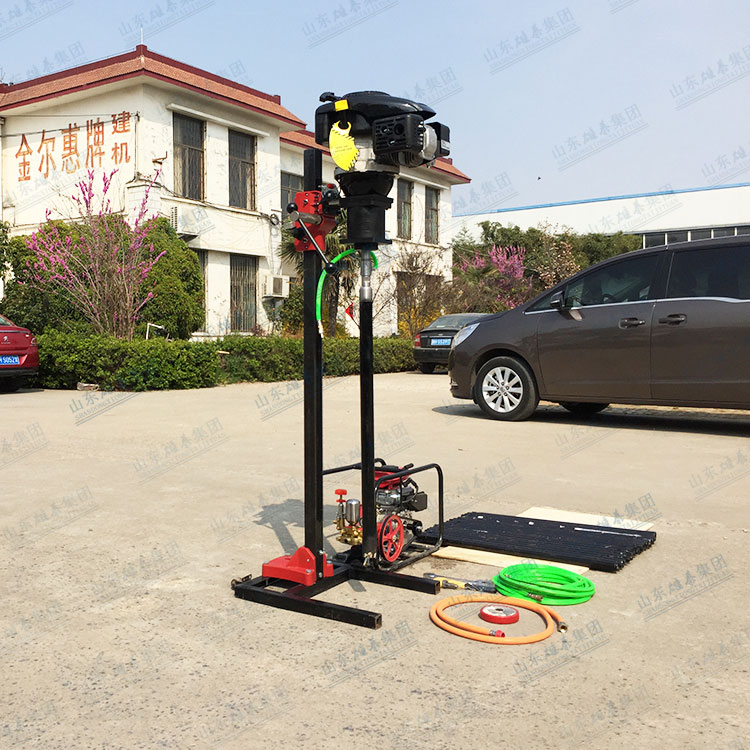

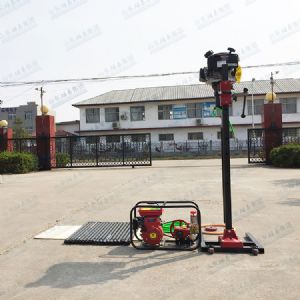

    I. Introduction of BZ-30L vertical backpack drill

    The BZ-30L vertical knapsack drill is a portable core drill that can be disassembled and used mainly for mineral exploration, shallow sampling of geochemical exploration, vein exploration, geological research, engineering investigation, oil field investigation, hydraulic engineering investigation, highway engineering investigation, tunnel lining, invert detection, etc. The kohler tiny portable core drilling machine is designed for mineral investigation, field survey, geological study and prospectors and tailor-made, through our decades of experience, and in dozens of countries and regions in the world of the field validation, continuous improvement and improve the quality of our products and believe that this tool will be helpful for your work. Bz-30l vertical backpack core drill main features: compact structure, detachable, small volume, light weight, easy to carry; Imported brand gasoline engine, high horsepower, guaranteed depth of drilling; With a drill frame, field work is more convenient and safe.

    Ii. Technical parameters of BZ-30L vertical backpack core drill

    項目參數項目參數
    動力品牌科勒變速比7:1
    動力7.75馬力傳動方式無級變速
    燃油箱容積1400ml鉆桿尺寸32*800mm
    傳動方式齒輪傳動最大深度30m
    啟動方式拉繩啟動孔徑32~108mm
    離合模式自動離合主機凈重67kg
    取芯模式回轉式主機尺寸550*450*420mm
    終孔轉速540r/min
    三、BZ-30L型立式背包巖心鉆機配置清單


    項目名稱規格單位數量
    鉆機(含鉆架)BZ-30L臺1
    鉆桿(含公母接手)Φ32*80028
    腦袋Φ60個1
    巖心管Φ60*6001
    合金鉆頭Φ60個1
    金剛石鉆頭Φ60個1
    汽油高壓泵 臺1
    吸水管 1
    吸水濾網 個1
    回水管 1
    供水管 1
    管鉗 1
    墊叉 1
    扳手 1
    井口板 個1
    火花塞 個1
    管口墊圈 1
    水封 1
